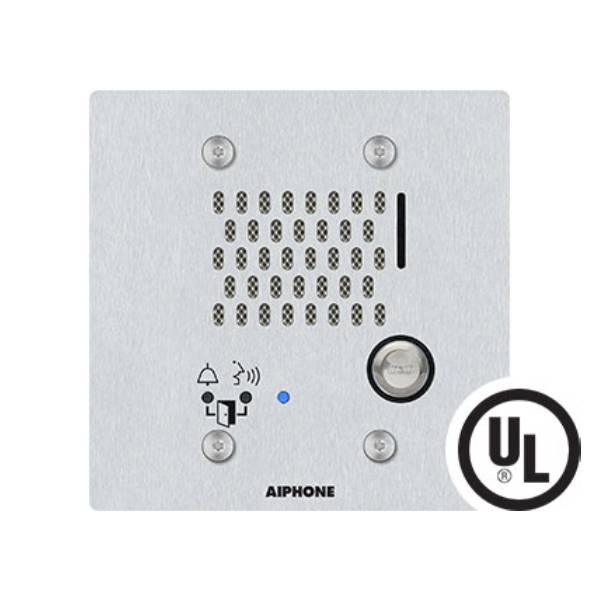

Aiphone IX-SS-2G, IP Door Station

Aiphone IX-SS-2G, IP Door Station

Aiphone IX-SS-2G is a SIP compatible IP Door Station, vandal resistant stainless steel cover 2 Gang.

Model: IX-DVF-2RA Door Station

The Aiphone IP Video Door station is compatible with the IX series, It is UL certified.

SIP - Peer to Peer- Backwards Compatible

Door Station Features

  • SIP 2.0 Compliant
  • 802.3af PoE
  • Illuminated call button indicator
  • IP65 rated, weather resistant (IP65)
  • 1 contact output
  • 1 trigger input

Specifications

  • Power Source
  • PoE (IEEE 802.3af class 0)
  • Power Draw
  • 3.36 Watts
  • Audio Codec
  • G.711 (μ-law, A law), G.722
  • Protocols
  • IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
  • Port Security
  • IEEE 802.1X
  • Operating Temp
  • -40° - 140°F (-40° - 60°C)
  • Ingress Protection
  • IP65
  • Impact Protection
  • IK08
  • Dimensions
  • 4-¾" H x 4-¾" W
  • Mounting
  • Flush mounted with locally available 2-gang box (2-1/2" deep or greater), or surface mount with the SBX-2G/A Stainless Steel surface mount box
