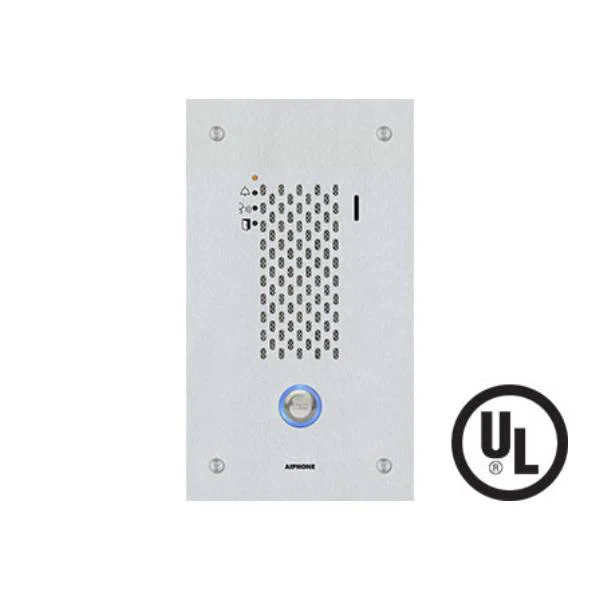

Aiphone IX-SSA, IP Door Station
The IX-SSA is a SIP compatible Flush Mounted IP door station, it is vandal resistant with a stainless steel cover.
Model: IIX-SSA IP Door Station
The Aiphone IP Video Door station is compatible with the IX series, It is UL certified.
SIP - Peer to Peer- Backwards Compatible
Door Station Features
- SIP 2.0 Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- Illuminated call button indicator
- Slot for micro SD card (not provided by Aiphone)
- IP65 rated, weather resistant (IP65)
- 2 contact outputs
- 6 trigger inputs
Shop CTC Communications for best deals on Aiphone Door Stations
Specifications
- Power Source
- PoE (IEEE 802.3af class 0)
- Power Draw
- 3.36 Watts
- Audio Codec
- G.711 (μ-law, A law), G.722
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- -40° - 140°F (-40° - 60°C)
- Ingress Protection
- IP65
- Impact Protection
- IK08
- Dimensions
- 10-7⁄16" H x 5-⅞" W
- Mounting
- Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box
$684.33
Aiphone IX-SSA, IP Door Station—
$684.33
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The IX-SSA is a SIP compatible Flush Mounted IP door station, it is vandal resistant with a stainless steel cover.
Model: IIX-SSA IP Door Station
The Aiphone IP Video Door station is compatible with the IX series, It is UL certified.
SIP - Peer to Peer- Backwards Compatible
Door Station Features
- SIP 2.0 Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- Illuminated call button indicator
- Slot for micro SD card (not provided by Aiphone)
- IP65 rated, weather resistant (IP65)
- 2 contact outputs
- 6 trigger inputs
Shop CTC Communications for best deals on Aiphone Door Stations
Specifications
- Power Source
- PoE (IEEE 802.3af class 0)
- Power Draw
- 3.36 Watts
- Audio Codec
- G.711 (μ-law, A law), G.722
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- -40° - 140°F (-40° - 60°C)
- Ingress Protection
- IP65
- Impact Protection
- IK08
- Dimensions
- 10-7⁄16" H x 5-⅞" W
- Mounting
- Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box
