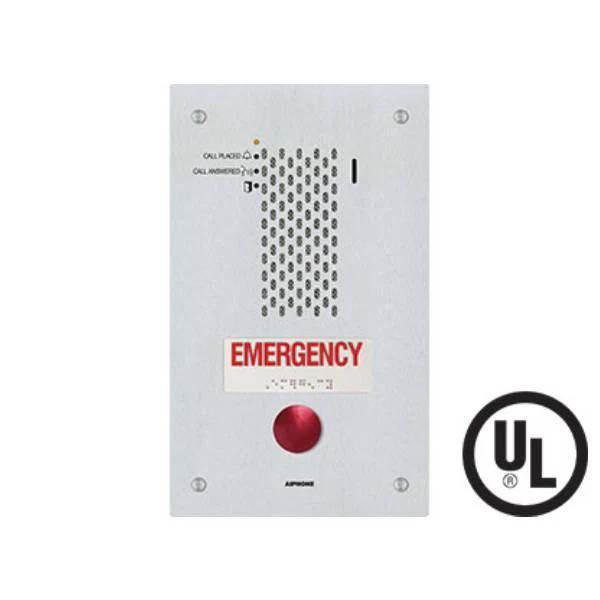

Aiphone IX-SSA-RA, IP Emergency Door Station
The IX-SSA-RA is a SIP compatible IP Emergency Door Station. It is ADA compliance with one emergency call button.
Model: IX-SSA-RA Door Station
The Aiphone IP Video Door station is compatible with the IX series, It is UL certified.
SIP - Peer to Peer- Emergency
Door Station Features
- SIP 2.0 compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- Emergency call button
- ADA compliant raised lettering and Braille signage
- Illuminated call button indicator
- Slot for micro SD card (not provided by Aiphone)
- IP65 rated, weather resistant (IP65)
- 2 contact outputs
- 6 trigger inputs
Shop CTC Communications for best deals on Aiphone Door Stations
Specifications
- Power Source
- PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
- Power Draw
- 3.36 Watts @ 48V DC
- Audio Codec
- G.711 (μ-law, A law), G.722
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- -40° - 140°F (-40° - 60°C)
- Ingress Protection
- IP65
- Impact Protection
- IK08
- Dimensions
- 10-7⁄16" H x 5-⅞" W
- Mounting
- Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
