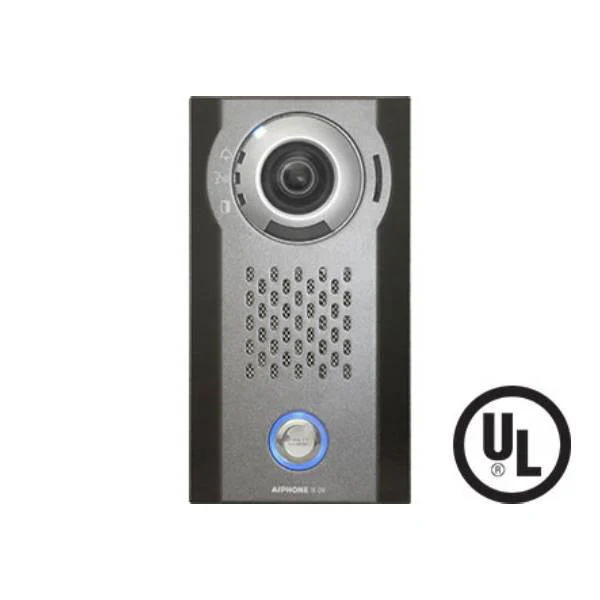

Aiphone IX-DV, IP Video Door Station
The IX-DV is a SIP compatible IP Video Door Station, it is vandal resistant and features an aluminium die cast cover.
Model: IX-EA IP Door Station
The Aiphone IP Video Door station is compatible with the IX series, UL certified.
SIP - Peer to Peer- Backwards Compatible
Door Station Features
- Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
- ONVIF® Profile S Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- 1.23 megapixel fixed color video camera
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal resistant
- Stainless steel faceplate
- 2 contact outputs (door release, external signaling)
- 6 trigger inputs
- 2-year warranty!
Shop CTC Communications for best deals on Aiphone Door Stations
Specifications
- Power Source
- PoE (IEEE 802.3af class 0)
- Power Draw
- 5.28 Watts
- Camera
- ⅓" CMOS 1.23 megapixel
- Min. illumination
- 5 lux
- Audio Codec
- G.711 (μ-law, A law), G.722
- Video Codec
- H.264/AVC, motion JPEG
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- -40° - 140°F (-40° - 60°C)
- Protection
- IP54, IK08
- Dimensions
- 8-1⁄16" H x 4-½" W x 2-1⁄16" D
- Mounting
- Surface mounted with included bracket.
$293.44
Original: $838.39
-65%Aiphone IX-DV, IP Video Door Station—
$838.39
$293.44Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The IX-DV is a SIP compatible IP Video Door Station, it is vandal resistant and features an aluminium die cast cover.
Model: IX-EA IP Door Station
The Aiphone IP Video Door station is compatible with the IX series, UL certified.
SIP - Peer to Peer- Backwards Compatible
Door Station Features
- Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
- ONVIF® Profile S Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- 1.23 megapixel fixed color video camera
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal resistant
- Stainless steel faceplate
- 2 contact outputs (door release, external signaling)
- 6 trigger inputs
- 2-year warranty!
Shop CTC Communications for best deals on Aiphone Door Stations
Specifications
- Power Source
- PoE (IEEE 802.3af class 0)
- Power Draw
- 5.28 Watts
- Camera
- ⅓" CMOS 1.23 megapixel
- Min. illumination
- 5 lux
- Audio Codec
- G.711 (μ-law, A law), G.722
- Video Codec
- H.264/AVC, motion JPEG
- Protocols
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security
- IEEE 802.1X
- Operating Temp
- -40° - 140°F (-40° - 60°C)
- Protection
- IP54, IK08
- Dimensions
- 8-1⁄16" H x 4-½" W x 2-1⁄16" D
- Mounting
- Surface mounted with included bracket.
