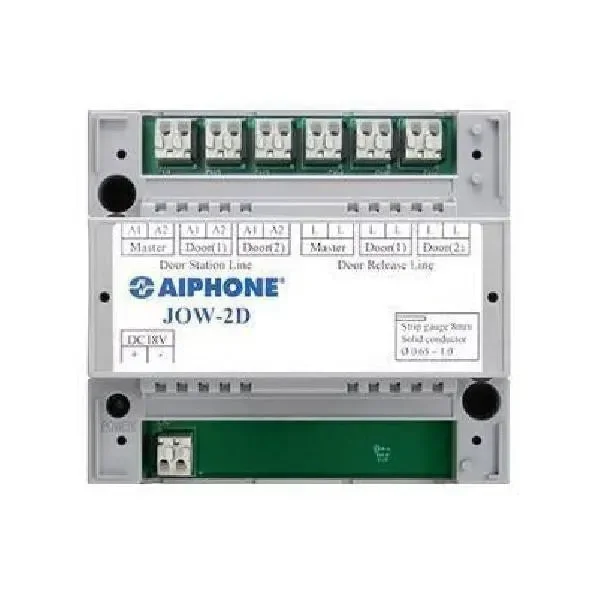

Aiphone JOW-2D Two Door Adaptor for Jo Series

Aiphone JOW-2D Two Door Adaptor for Jo Series

The JOW-2D is an two door adaptor for the JO Series video intercom system that will allow two video door stations to be on the system.

Model: JOW-2d

FEATURES

  • Allows a second door station to be connected to any JO Series system
  • Can be added to existing systems for expansion
  • Includes normally open contacts to activate a strike for unlocking the door
SPECS
  • Power 18V DC (supplied by JO Series master station)
  • Consumption 100mA (max), 18mA (standby)
  • Relay Outputs 24V DC, 1A (JO-1MDW) / 24V DC, 500mA (JO-1MD, JO-1FD)
  • Operating Temperature 32° ~ 104° F (0° ~ 40°C)
  • Dimensions 4-¼" H x 4-13 16" W x 2-?" D

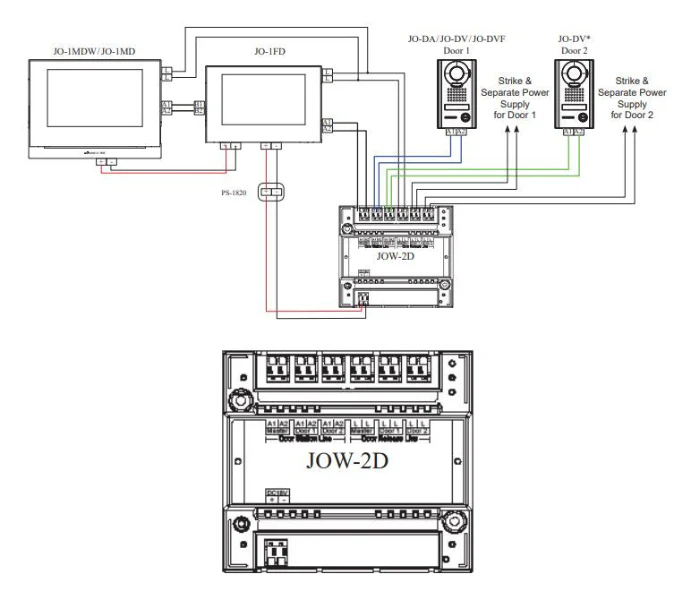

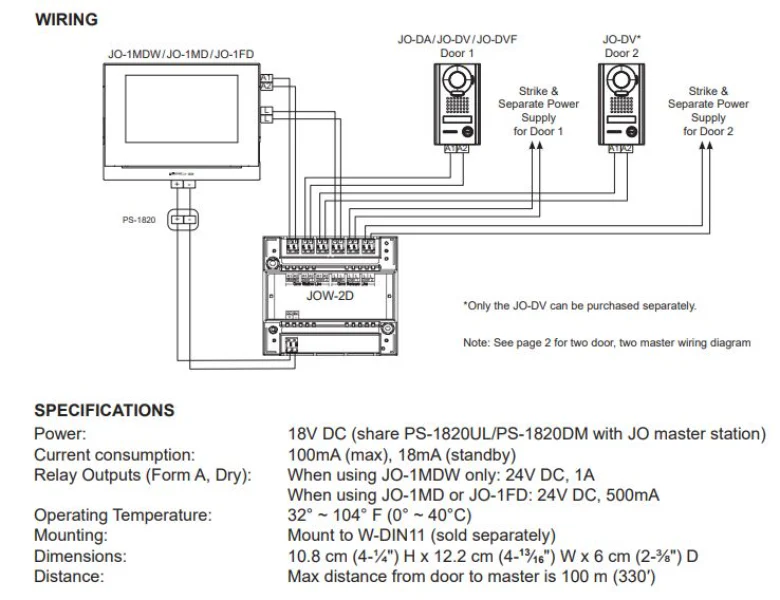

  • See attached wiring diagram for more information

The adaptor has inputs for two JO video door stations and outputs to control door release for each of those door stations. When either door station calls in, that image will be displayed on the inside station(s).

The person inside answers the call, and when pushing the door release button, only the associated door release mechanism will trigger.

If one door station is in use, the call button on the other door station will not activate a call-in.


Shop CTC Communications for best deals on Aiphone Intercom Kits

$119.13

Original: $340.37

-65%
Aiphone JOW-2D Two Door Adaptor for Jo Series—

$340.37

$119.13

Product Information

Shipping & Returns

Description

The JOW-2D is an two door adaptor for the JO Series video intercom system that will allow two video door stations to be on the system.

Model: JOW-2d

FEATURES

  • Allows a second door station to be connected to any JO Series system
  • Can be added to existing systems for expansion
  • Includes normally open contacts to activate a strike for unlocking the door
SPECS
  • Power 18V DC (supplied by JO Series master station)
  • Consumption 100mA (max), 18mA (standby)
  • Relay Outputs 24V DC, 1A (JO-1MDW) / 24V DC, 500mA (JO-1MD, JO-1FD)
  • Operating Temperature 32° ~ 104° F (0° ~ 40°C)
  • Dimensions 4-¼" H x 4-13 16" W x 2-?" D
  • See attached wiring diagram for more information

The adaptor has inputs for two JO video door stations and outputs to control door release for each of those door stations. When either door station calls in, that image will be displayed on the inside station(s).

The person inside answers the call, and when pushing the door release button, only the associated door release mechanism will trigger.

If one door station is in use, the call button on the other door station will not activate a call-in.


Shop CTC Communications for best deals on Aiphone Intercom Kits
