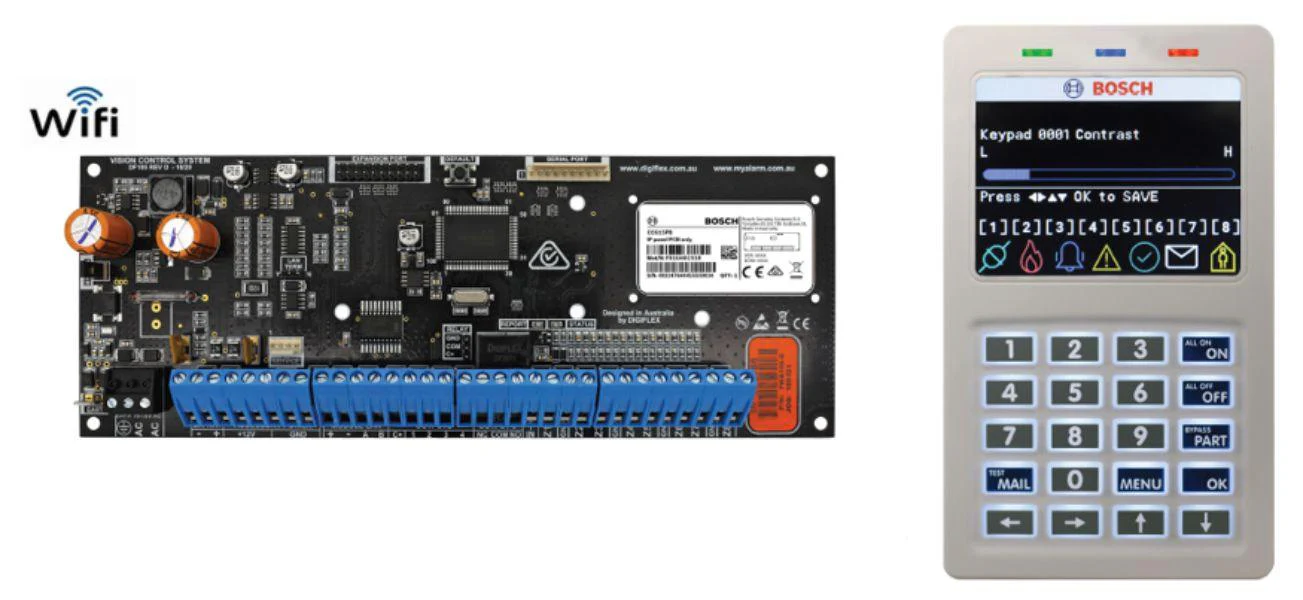

Bosch Solution 6000 Alarm IP PCB, No Dialler Interface Board with 3.5" Colour Screen Wi-Fi Keypad
The Bosch Solution 6000 Alarm PCB Board + White Wi-Fi Keypad is a quick and easy alarm upgrade swap out existing control board and keypad and utilise other existing security alarm components. No Dialler Interface on PCB
Model: CC615GWF IP kit with Wi-Fi keypad
In the alarm kit:
- Solution 6000 PCB Alarm Board, CC615PB IP
- White 3.5" Colour Screen Wi-Fi Alarm Keypad, CP737B
- The new CP736B keypad with Smart Card Reader and the CP737B keypad with Wi-Fi and Smart Card Reader are now available and supported in newly released software version 2.53.67 for the Solution 6000 Security Control Panel.
- Firmware version 2.53.67 upgrade is only suitable for Solution 6000 panels, which have serial numbers larger than 240000
- Requires MW350(small) or MW730B (large) enclosure for installation. Can be purchased additionally.
- PCB does not includes dialler interface for Back to Base monitoring set up*
- No IP module on PCB*
Bosch Solution 6000 PCB Alarm Board: CC615PB IP
16 on-board zones (expandable to 144 wired or wireless), partition-able to 8 areas with 256 PIN, token, keyfob and fingerprint user. PCB does not includes dialler interface for Back to Base monitoring set up*. No IP module on PCB
Bosch Solution 6000 Wi-Fi Smartcard Keypad, CP737B
White 3.5" Colour Screen Keypad Features :
- Built-in 40bit Mi-Fare Smartcard reader built in
- 802.11 b/g/n Wi-Fi connectivity built-in
- Large graphical display with LED backlight, with real time clock and temperature display, adjustable volume, backlight and contrast
- Up to 4 lines of 20 characters and icons, with dedicated ON, OFF and PART keys
- Alpha-numeric text prompting/programming
- Terminal block connections
- 3.5” Color graphical display with LED backlight
- Customizable Installer banner display.
- Review attached datasheet for more information on CP737B
- Firmware version 2.53.67 required on PCB
- Firmware version 2.53.67 upgrade is only suitable for Solution 6000 panels, which have serial numbers larger than 240000
Optional for Bosch Solution 6000 Alarm Systems
Connect to the MyAlarm cloud security service to make use of the iFob Control app available on both IOS and Android OS. Check system status, arm or disarm, and operate doors and outputs. You’ll never miss an alarm event with push, voice, SMS or email notification available. You will know when other users have armed or disarmed the system – like your children coming home, or your staff locking up when leaving.
Shop CTC Communications for best deals on Bosch 6000 Security Alarm Systems
Original: $362.81
-65%$362.81
$126.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Bosch Solution 6000 Alarm PCB Board + White Wi-Fi Keypad is a quick and easy alarm upgrade swap out existing control board and keypad and utilise other existing security alarm components. No Dialler Interface on PCB
Model: CC615GWF IP kit with Wi-Fi keypad
In the alarm kit:
- Solution 6000 PCB Alarm Board, CC615PB IP
- White 3.5" Colour Screen Wi-Fi Alarm Keypad, CP737B
- The new CP736B keypad with Smart Card Reader and the CP737B keypad with Wi-Fi and Smart Card Reader are now available and supported in newly released software version 2.53.67 for the Solution 6000 Security Control Panel.
- Firmware version 2.53.67 upgrade is only suitable for Solution 6000 panels, which have serial numbers larger than 240000
- Requires MW350(small) or MW730B (large) enclosure for installation. Can be purchased additionally.
- PCB does not includes dialler interface for Back to Base monitoring set up*
- No IP module on PCB*
Bosch Solution 6000 PCB Alarm Board: CC615PB IP
16 on-board zones (expandable to 144 wired or wireless), partition-able to 8 areas with 256 PIN, token, keyfob and fingerprint user. PCB does not includes dialler interface for Back to Base monitoring set up*. No IP module on PCB
Bosch Solution 6000 Wi-Fi Smartcard Keypad, CP737B
White 3.5" Colour Screen Keypad Features :
- Built-in 40bit Mi-Fare Smartcard reader built in
- 802.11 b/g/n Wi-Fi connectivity built-in
- Large graphical display with LED backlight, with real time clock and temperature display, adjustable volume, backlight and contrast
- Up to 4 lines of 20 characters and icons, with dedicated ON, OFF and PART keys
- Alpha-numeric text prompting/programming
- Terminal block connections
- 3.5” Color graphical display with LED backlight
- Customizable Installer banner display.
- Review attached datasheet for more information on CP737B
- Firmware version 2.53.67 required on PCB
- Firmware version 2.53.67 upgrade is only suitable for Solution 6000 panels, which have serial numbers larger than 240000
Optional for Bosch Solution 6000 Alarm Systems
Connect to the MyAlarm cloud security service to make use of the iFob Control app available on both IOS and Android OS. Check system status, arm or disarm, and operate doors and outputs. You’ll never miss an alarm event with push, voice, SMS or email notification available. You will know when other users have armed or disarmed the system – like your children coming home, or your staff locking up when leaving.
Shop CTC Communications for best deals on Bosch 6000 Security Alarm Systems
