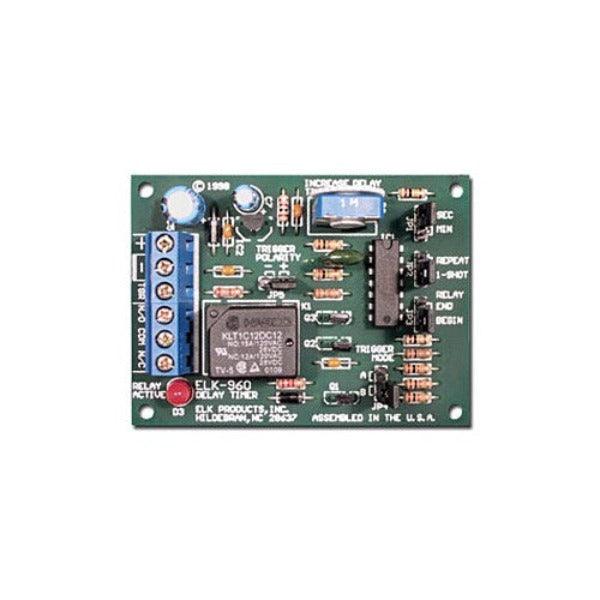

ELK Universal Timer Module, RRC2300

101-281 UNIVERSAL TIMER MODULE It offers an intuitive, user-friendly design perfect for DIY projects and commercial settings alike.

"Universal Timer Module" economical and flexible solution for many general-purpose time delay applications. The unit operates on 12 to 24Volts D.C. and can be selected for positive or negative trigger logic. Setup is easy with thumb wheel adjustment between 1 and 60 seconds, a quick jumper setting converts the time from seconds to minutes. The timer can be configured to activate once for each trigger, or pulse as soon as power is applied.

The 101-281 Universal Timer Module is a highly reliable product designed specifically for standalone access control setups. This module offers a range of features and benefits that enhance the functionality and security of your access control system

Model : 101-281
Features :

• Operating Voltage Range: 12 to 24 Volts D.C.
• AdjustableDelayTime.
• PositiveorNegativeLowCurrentTrigger.
• SPDT (Form "C") Relay.
• Selectable Initial Relay State: ON / OFF.
• Output Modes: One-Shot or Repeat.
• LED Indication of Relay Status.
• Lifetime LimitedWarranty, call for details.
• Packed In Reusable Poly Storage Box.
• SPECIFICATIONS:
• Time Settings: 1 Sec to ~ 60 Min.
• Relay Contact Rating: 7A @ 30 VDC.
• 10A @ 125 VAC.
• Operating Voltage: 12 to 24 Volts D.C.
• Trigger Voltage: 4.5 - 24 Volts D.C.
• Input Trigger Current: 1.2 mA.
• Current Draw With Relay On: 40mA.
• Size: 76x55x25mm (Fits Std.Snap Track)
