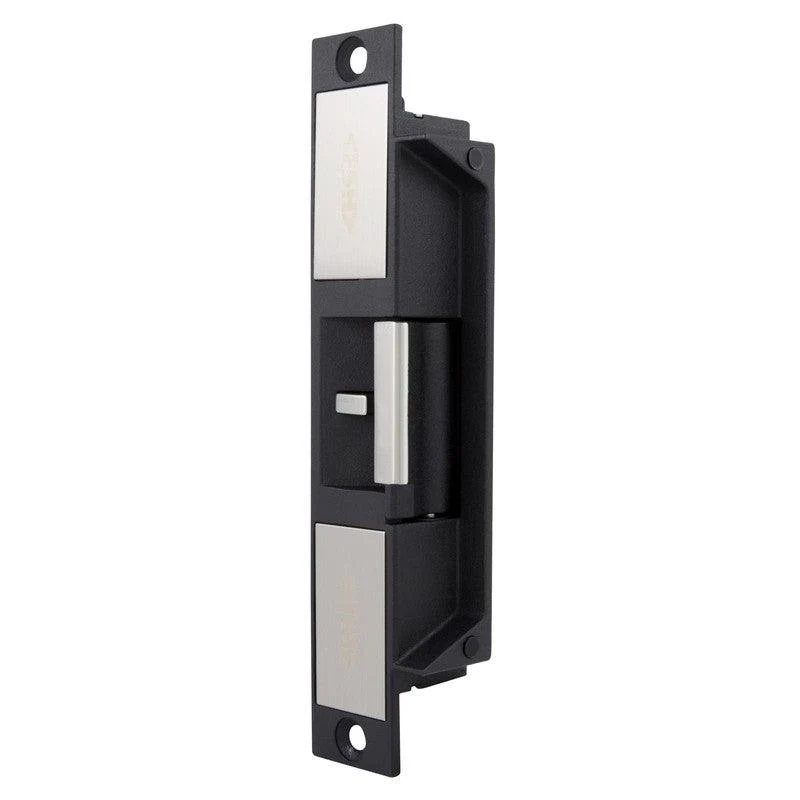

FSH FES20M High Security Electric Strike, Monitored, 1200kg, 12/24V DC

FSH FES20M High Security Electric Strike – Monitored, 1200kg, 12/24V DC

The FSH FES20M High Security Electric Strike is a heavy-duty, fully monitored electric door strike designed for commercial access control, secure entry points and high-security door applications. Part of the patented FES20 Series, this mortice mount strike offers a strong holding force of up to 1200kg and supports field-selectable Power To Lock (PTL) or Power To Open / Power To Release (PTO/PTR) operation.

Built from stainless steel and designed for demanding access control installations, the FES20M is suitable for use with compatible intercom systems, access control readers, keypads and door controllers where reliable electric locking and monitoring are required.

Key Features of the FSH FES20M

• High security electric strike for commercial and secure access control
• Fully monitored model with lock, latch and anti-tamper monitoring
• Up to 1200kg holding strength
• Mortice mount design for professional door frame installation
• Field selectable Power To Lock or Power To Open / Release
• Patented capstan mechanism for simple PTL/PTO changeover
• No loose pins or springs during function changeover
• Pre-drilled threaded cavities for extension lips
• 10mm strike lip supplied as standard
• Mounting kit included
• Multi-voltage DC input for flexible access control installations
• Fire rated up to 4 hours
• SCEC approved for secure area applications

Full Monitoring Functions

• LSS – Lock Status Sensor: monitors the lock status
• DSS – Door/Latch Status Sensor: monitors latch engagement
• ATS – Anti-Tamper Sensor: monitors whether the strike is installed in the frame

Technical Specifications

Brand	FSH
Model	FES20M / FSH-FES20M
Product Type	High security electric strike
Monitoring	Fully monitored – LSS, DSS and ATS
Mounting	Mortice / recessed mount
Holding Strength	Up to 1200kg
Operation	Power To Lock or Power To Open / Release, field selectable
Voltage	11–30V DC multi-voltage input
Current	220mA @ 12V DC / 120mA @ 24V DC / 80mA @ 30V DC

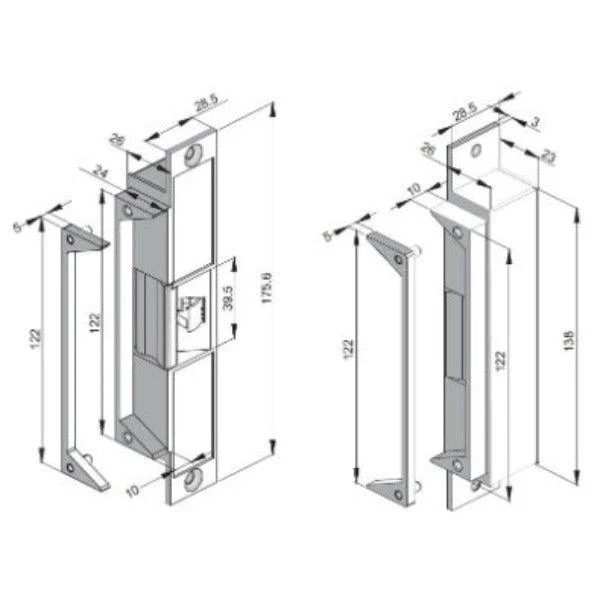

Dimensions	176mm x 44.5mm x 26.5mm
Fire Rating	Up to 4 hours
Approvals	SCEC approved for secure area applications

Ideal for High-Security Access Control

The FSH FES20M is designed for secure commercial doors where strength, monitoring and reliable electric locking are essential. It is commonly used on office buildings, government facilities, schools, commercial sites, controlled staff areas and other locations requiring monitored access control.

Its field-selectable PTL/PTO operation allows installers to configure the strike to suit the site’s fail-safe or fail-secure requirements, depending on the door, access control design and compliance needs.

Installation Note

The FSH FES20M is a professional-grade electric strike and should be installed by a qualified security or access control technician. Door type, lock compatibility, power supply, monitoring requirements and fire compliance should be confirmed before installation.

Why Choose FSH Electric Strikes?

• Trusted brand for commercial electronic locking solutions
• High holding force for demanding access control applications
• Fully monitored model for improved system feedback
• Flexible PTL/PTO operation for site-specific requirements
• Fire-rated and SCEC approved for secure environments
• Designed for professional intercom and access control installations
