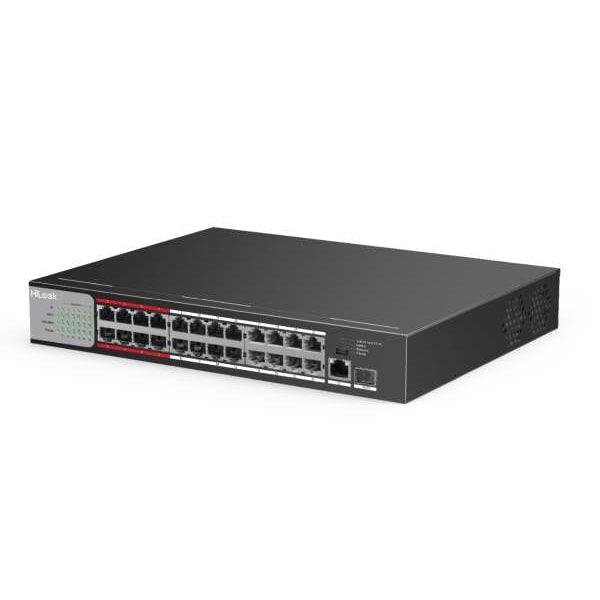

HiLook Network Switch 24 Port POE, NS-0326P-230

HiLook Network Switch 24 Port POE, NS-0326P-230

HiLook Network Switch 24 Port POE, utilises the latest in chip technology, the NS-0326P-230 offers uninterrupted speed and stability to any network. With data rates up to 2.5 Gbps, it provides a reliable and secure connection.

Model: NS-0326P-230

Unmanaged switch network switch with 24 ports fast ethernet power over ethernet.

Features
  • Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
  • All ports support 6 kV lighting protection
  • 230 W PoE power budget
  • Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode
  • MAC address auto learning and auto aging

Specifications

  • NS-0318P-130(B)
  • Port Number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • Working ModeStandard mode (default); Extend mode
  • High Priority PortsPorts 1 to 8
  • Ports For Long-Distance TransmissionPorts 17 to 24
  • MAC Address Table4 K
  • Switching Capacity8.8 Gbps
  • Packet Forwarding Rate6.547 Mpps
  • Internal Cache2.75 Mbits
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

    Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

  • PoE PortPorts 1 to 24
  • Max. Port Power30 W
  • PoE Power Budget230 W
  • Max. Power Consumption250 W
  • ShellMetal material
  • Gross Weight3.33 kg (7.34 lb)
  • Net Weight2.55 kg (5.6 lb)
  • Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Power Consumption In Idle20 W

Shop CTC Communications for best deals on HiLook Security Surveillance



    $67.21

    Original: $192.03

    -65%
    HiLook Network Switch 24 Port POE, NS-0326P-230—

    $192.03

    $67.21
