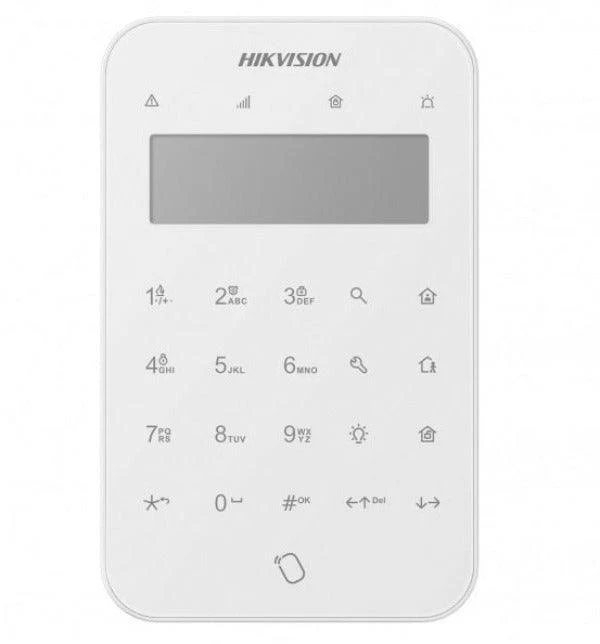

Hikvision DS-PK1-LT-WB AX PRO Wireless LCD screen Keypad

Hikvision DS-PK1-LT-WB Wireless LCD Keypad for AX PRO Alarm System

The Hikvision Wireless LCD Keypad DS-PK1-LT-WB is an advanced control interface designed for the Hikvision AX PRO Wireless Alarm System, combining clear on-screen system feedback with secure two-way wireless communication. Featuring a built-in LCD display, LED indicators, and audible buzzer alerts, this keypad provides users with instant visibility of alarm status and easy, intuitive system control.

Ideal for homes, offices, retail spaces, and commercial premises, the DS-PK1-LT-WB offers a practical alternative to app-only control, making it simple for all users to arm, disarm, and manage alarms directly from a wall-mounted keypad.

Secure Two-Way Wireless Communication

Operating on 433 MHz two-way wireless communication, the DS-PK1-LT-WB ensures reliable, encrypted signal transmission between the keypad and the AX PRO control panel. Using 2GFSK modulation, the keypad delivers stable performance with a wireless range of up to 800 metres in open areas, making it suitable for larger properties and multi-room installations.

All commands and status updates are securely transmitted, ensuring dependable system operation even in environments with potential wireless interference.

Clear LCD Display & System Status Visibility

Unlike basic keypads, the DS-PK1-LT-WB features a built-in LCD screen that allows users to view system information directly on the keypad. Combined with LED indicators and audible buzzer alerts, users receive clear visual and audio feedback for alarm events, arming states, and system conditions.

This makes the keypad especially useful in shared environments where quick confirmation of system status is essential.

Flexible Alarm Control & Emergency Functions

The keypad supports a wide range of alarm operations, including:

• STAY and AWAY arming

• Disarming and alarm clearing

• Silent alarm activation

• Output control for connected devices

For added safety, the DS-PK1-LT-WB includes one-touch Fire, Panic, and Medical emergency buttons, allowing immediate alert activation in emergency situations.

Modern Touch Design & Backlit Keys

Designed with a full touch keypad and LED backlighting, the DS-PK1-LT-WB offers a clean, modern appearance while remaining easy to use day or night. The backlit keys ensure visibility in low-light areas such as entryways, hallways, and offices after hours.

Remote Configuration & Long Battery Life

Like all AX PRO accessories, the DS-PK1-LT-WB is fully configurable through the Hik-Connect app, allowing installers and system administrators to adjust settings remotely without needing to attend site.

The keypad is powered by four CR123 batteries, delivering a standby battery life of more than two years under normal conditions. Batteries are easy to replace, helping reduce ongoing maintenance.

Key Features at a Glance

• 433 MHz two-way wireless communication

• LCD screen for system configuration and status

• STAY / AWAY arming and disarming

• Silent alarm and output control support

• Fire, panic & medical emergency buttons

• LED indicators and buzzer alerts

• Full touch keypad with LED backlight

• Remote configuration via Hik-Connect app

• Long battery life with easy replacement

• Screw-mounted installation

Technical Specifications

RF Transmission

• RF Frequency: 433 MHz

• RF Modulation: 2GFSK

• RF Range: Up to 800 m (open area)

Power

• Power Supply: Battery operated

• Battery Type: 4 × CR123 batteries

• Battery Life: Standby time over 2 years

Environmental

• Operating Temperature: -10°C to +55°C

• Operating Humidity: 10% – 90% (non-condensing)

Physical

• Dimensions: 140 × 86 × 22 mm

• Weight: 151 g (without batteries)

• Installation: Screw mounting

🔗 View Full Specifications on the Official Hikvision Website

🎯 Who This Keypad Is Best For

This keypad is ideal if you want:

• A clear on-screen display instead of icon-only indicators

• Easy, shared alarm control for families, offices, or retail staff

• A wall-mounted control point that complements mobile app access

• Fast emergency activation via dedicated panic, fire, and medical buttons

• A professional keypad with long battery life and minimal maintenance

👉 Perfect for: homes, small businesses, retail stores, offices, and properties where multiple users need simple, visible alarm control.

Comparison: DS-PK1-LT-WB vs DS-PK1-E-WB Touch Keypad
