NIDAC Control Relay- Garage Door Module, CR2

NIDAC Control Relay- Garage Door Module

Model: CR2

Quick Overview:

• 12 & 24VDC operation
• 2 Pole change over contacts.
• 2 Amp. rated relay.
• Low 1.2 mA input current.
• LED indicates operation
• Size (mm): 185(L) x 45(W) x 20(H)
• suitable to following purpose : Dialler interface. Electric Door Strike. SIU interface. Strobe lamp driver. Voltage level shifting

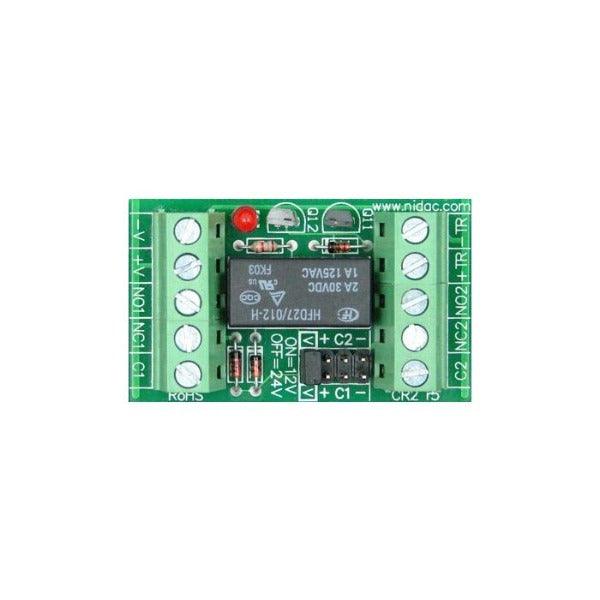

The product is supplied as a PCB only with no housing. This allows installation into gate motor housing etc.

The two relays are activated by remotes.

Downloads

NIDAC Control Relay CR2 Datasheet
