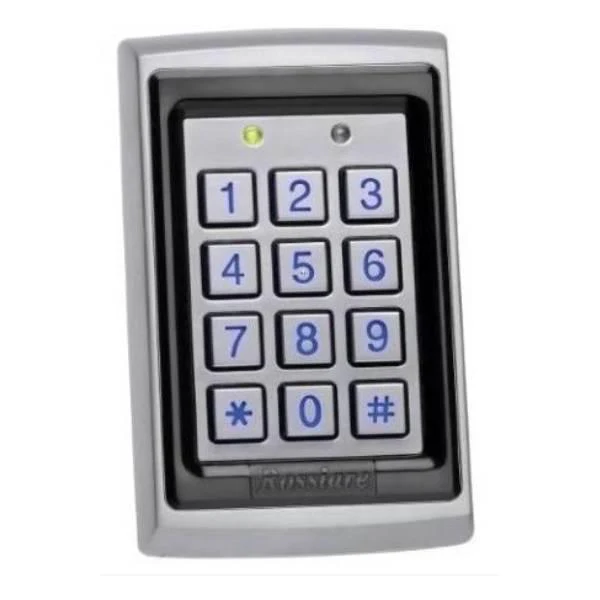

Rosslare AC-Q42HB Standalone Keypad Anti Vandal Proximity and Pin Control Metal

Rosslare AC-Q42HB Proximity & PIN Control Keypad – Anti-Vandal, All-Weather Design

The Rosslare AC-Q42HB is a feature-rich, anti-vandal standalone access controller that combines a backlit metal keypad with a built-in RFID proximity reader. With support for up to 500 users, this durable device is ideal for high-traffic, high-security environments.

Engineered for indoor and outdoor installations, the keypad features a slim metal frame, fully sealed epoxy housing, and an integrated heater for low-temperature operation—making it perfect for all-weather applications.

Model: AC-Q42HB

Key Features:

• Dual Authentication Support: Access via PIN, RFID card, or both

• 125 kHz RFID Card Reader: Built-in for convenient contactless access

• User Capacity: Supports up to 500 users with flexible PIN and card combinations

• Anti-Vandal Construction: Durable metal housing with backlit keys for visibility in low light

• Selectable Security Modes: Choose from 3 security levels with unique PIN codes

• Advanced Access Options:

  • Supports PIN codes up to 8 digits

  • Timed lockout after 3 incorrect PIN entries

• Visual & Audio Feedback: 2 tri-colour LEDs and built-in sounder for status and programming

Professional Features:

• Internal Heater: Automatically activates in sub-zero temperatures (-20°C)

• Optical Tamper Detection: Adds an extra layer of protection

• 10 Programmable Modes: For auxiliary I/O functions including:

  • Door Ajar, Forced Entry, Alarm Shunt, Door Monitor, and Secure Modes

• Fail-Safe & Fail-Secure Output: 2 Amp Form C Relay for Lock Strike

• REX Input & Bell Button Functionality: Bell operation supported via ‘*’ key with Rosslare BL-D40

Power Requirements:

• 12–24V DC or 16–24V AC

• Terminal block at rear—no exposed cables

Specifications:

• Brand: Rosslare

• Product Type: Keypad & Reader

• Warranty: 24 Months

🔒 Rosslare Standalone Keypad Comparison Table (500-User Models)

Model	Series	Keypad Type	Reader Type	Backlit	Housing	Tamper Detection	Weather Rating	Controller Mode	Notable Features
AYC-G54	Standard	Touch (Glass)	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Sleek glass design, piezo touch keys
AYC-F54	Standard	Piezoelectric	PROX / HID	Yes	All-metal	Yes	IP65	Yes	Durable metal, back cover tamper
AYC-E55	Standard	Standard Plastic	PROX / HID	Yes	Plastic enclosure	Yes	IP65	Yes	Budget-friendly, tamper-resistant
AYC-Q54B	Standard	Metal Piezo Keypad	PROX / HID	Yes	Metal (Vandal-Resistant)	Yes	IP65	Yes	Rear cable, optical tamper, blue backlight
AYC-E60B	GoPROX® Series	Plastic Keypad	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Converts to standalone with PS-x5 PSU
AYC-F60	GoPROX® Series	Piezoelectric	PROX / HID	Yes	Metal	Yes	IP65	Yes	HID-compatible, secure relay outputs
AYC-G60	GoPROX® Series	Touch Glass Keypad	PROX / HID	Yes	Sleek Glass + Plastic	Yes	IP65	Yes	Slim glass design, dual-authentication ready
AYC-Q60	GoPROX® Series	Metal Piezo Keypad	PROX / HID	Yes	Anti-Vandal Metal	Yes	IP65	Yes	Card + PIN, 3 security modes, advanced I/O

🔒 Shop at CTC Communications for the best deals on genuine Rosslare security products – your trusted partner in professional access control solutions.

You can find firmware updates and product documentation at rosslaresecurity.com.
