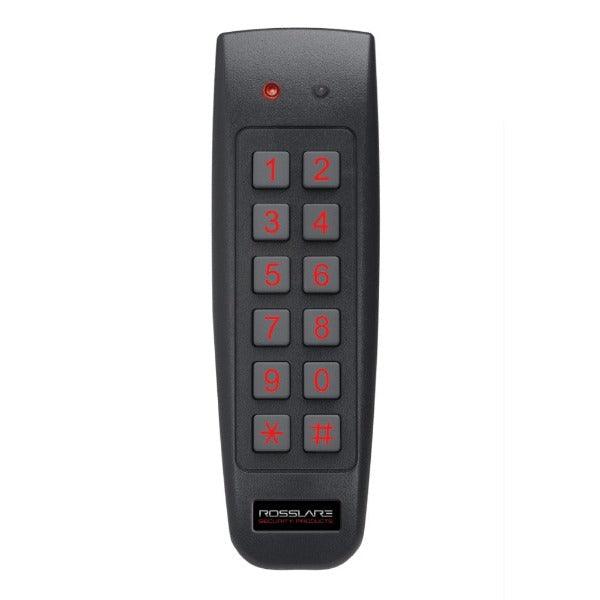

Rosslare AYC-G54 Keypad Convertible Slimline BKLIT with Resist

Rosslare keypad features convertible slimline design, BKLIT technology, and resistive touch capability, making it a versatile and durable choice. It also includes the AYC-G54 model number for easy identification.

Part of the convertible line of readers/controllers, this unit can be operated as
an outdoor backlit keypad reader, which connects to any standard controller,
or it can convert to a fully-featured, 500-user standalone controller when
connected to Rosslare’s PS-x25T family of intelligent power supply/relay units.
This unit provides a most effective solution for indoor and outdoor access
systems where PIN credentials are required.

Model: AYC-G54

Main Features:

• Supports 4- to 8-Digit PIN credentials
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, high-visibility RED backlit keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation
• User-friendly menu, based on keypad, LED and sounder indicators
• Back and cover optical tamper detection and output
• Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

Professional Grade Features:

• 8 selectable PIN transmission modes including options for key stream, binary, parity, and matrix
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
• 60 cm (23.6 in.) shielded interface cable

Specifications

BRAND	ROSSLARE
PRODUCT TYPE	Keypad & Reader
WARRANTY	60 Months

🔒 Rosslare Standalone Keypad Comparison Table (500-User Models)

Model	Series	Keypad Type	Reader Type	Backlit	Housing	Tamper Detection	Weather Rating	Controller Mode	Notable Features
AYC-G54	Standard	Touch (Glass)	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Sleek glass design, piezo touch keys
AYC-F54	Standard	Piezoelectric	PROX / HID	Yes	All-metal	Yes	IP65	Yes	Durable metal, back cover tamper
AYC-E55	Standard	Standard Plastic	PROX / HID	Yes	Plastic enclosure	Yes	IP65	Yes	Budget-friendly, tamper-resistant
AYC-Q54B	Standard	Metal Piezo Keypad	PROX / HID	Yes	Metal (Vandal-Resistant)	Yes	IP65	Yes	Rear cable, optical tamper, blue backlight
AYC-E60B	GoPROX® Series	Plastic Keypad	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Converts to standalone with PS-x5 PSU
AYC-F60	GoPROX® Series	Piezoelectric	PROX / HID	Yes	Metal	Yes	IP65	Yes	HID-compatible, secure relay outputs
AYC-G60	GoPROX® Series	Touch Glass Keypad	PROX / HID	Yes	Sleek Glass + Plastic	Yes	IP65	Yes	Slim glass design, dual-authentication ready
AYC-Q60	GoPROX® Series	Metal Piezo Keypad	PROX / HID	Yes	Anti-Vandal Metal	Yes	IP65	Yes	Card + PIN, 3 security modes, advanced I/O

🔒 Shop at CTC Communications for the best deals on genuine Rosslare security products – your trusted partner in professional access control solutions.

You can find firmware updates and product documentation at rosslaresecurity.com.
