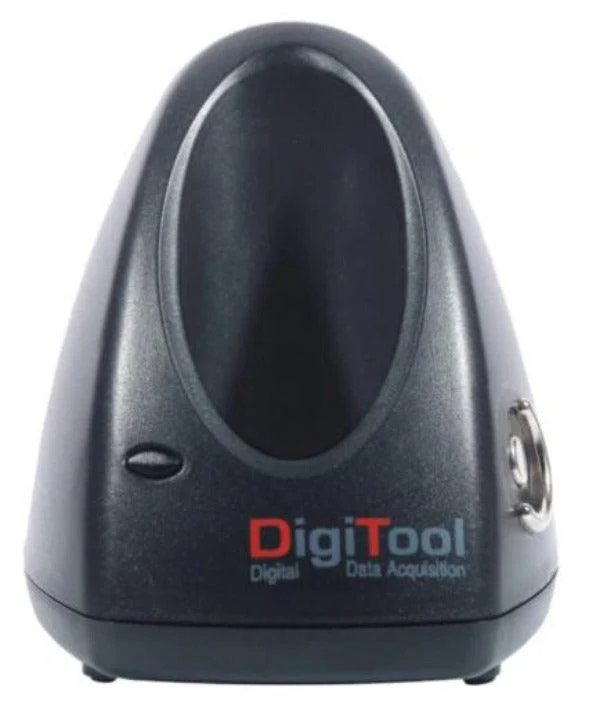

Rosslare GC-02 Data Acquisition Base
Data Acquisition Reader Base
ROSSLARE’S DIGITOOL® GC-02 BASE IS PART OF ROSSLARE’S DIGITOOL® GUARD PATROL SYSTEM ENCOMPASSING A COMPLETE RANGE OF PROFESSIONAL, LEADING-EDGE, HIGH-QUALITY, HIGH-PERFORMANCE PRODUCTS FOR PRIVATE AND PUBLIC SECTORS. SERVING AS A CHARGING STATION FOR ROSSLARE’S DIGITOOL® GC-01 READER, THE RUGGED GC-02 CAN BE WALL-MOUNTED OR USED ON A DESKTOP. IT PROVIDES AN RS-232 INTERFACE TO A SINGLE PC AND A LOCAL ID DALLAS IBUTTON™ CHIP READER FOR LOCATION AND EVENT TAGS
ENROLLMENT. THE DIGITOOL® GC-02 IS THE IDEAL COMPONENT FOR USE WITH LOCAL, SINGLE-PC-CONTROLLED APPLICATIONS.
Model: GC-02
Main Features:
- Spring-loaded contacts for easy docking of the GC-01
- Built-in AC-DC adapter and fast charger for the GC-01’s 1800 mAh lithium-ion battery
- AC-DC wall transformer included
- Built-in ID chip reader for enrollment and recording of locations, events, and user tag data
- Ultra-low power consumption
- 3-color LED battery status indicator:
- Orange – GC-01 Reader not docked
- Red – GC-01 is docked and charging
- Green – GC-01 battery is fully charged
- Contains no parts that require user servicing
- Attractive, efficient, and rugged dust and water-resistant design
- Attractive, efficient, and rugged design
Professional Grade Features:
- Flexibility with the option to select models with Dallas iButton ID chip (GA-01/AT-32B)
- Rotating RS-232 9-pin serial port with a 3 mm Barrel socket
- Full duplex RS-232 communication at 9600 baud
- Small desktop footprint with rubber feet
- Wall-mount option helps save desktop space
- Integrates with the GCK-01 Kit, the GC-50 PSTN remote station communicator, and the Guard Patrol product family
- Interface compatibility with the GC-50 modem communicator to facilitate upgrading
Downloads
Rosslare Data Acquisition Base, GC-02 Datasheet
