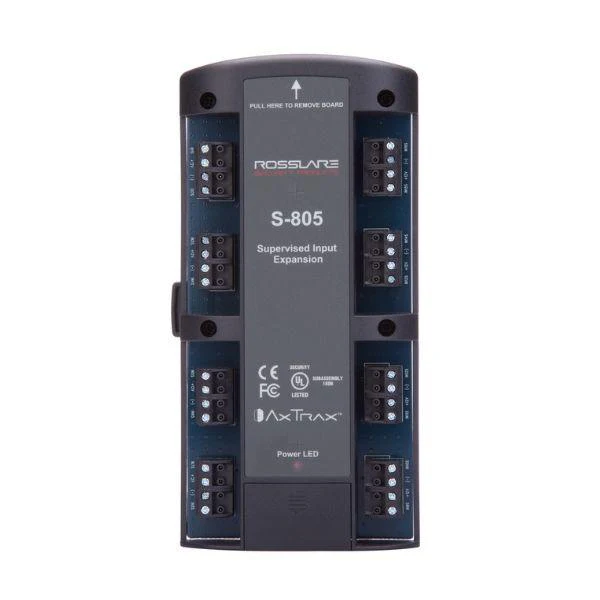

Rosslare S-805 Expansion Board for AC-825IP
Rosslare Expansion Board for AC-825IP, S-805
The AC-825IP is a state-of-the-art 4-door networked access controller and is the
backbone of a medium-scale to high-scale security system. The controller comes
with one onboard expansion slot and can be further expanded by connecting
up to 12 expansion boards via OSDP. Using only D-805 door expansion boards,
a single AC-825IP can handle up to 58 doors and 60,000 users. Driven by
AxTraxNG™ – Rosslare’s powerful, flexible, and easy-to-use software – the
system provides an ideal modular and expandable solution for commercial and
institutional needs
Model: S-805
Main Features:
- Up to 58 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
- Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bidirectional push communication for enhanced data transmission speed and reliability
- Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
- 4 auxiliary inputs and 2 auxiliary outputs
- Supports 2 OSDP readers
- One onboard expansion slot and an additional 12 expansion boards via OSDP (R/S/D/P-805)
- R-805 – 16 outputs
- S-805 – 16 inputs
- D-805 – 4-door expansion
- P-805 – 16 inputs and 8 outputs
- ME-1515 metal enclosure holds 2 expansion boards or an AC-825IP board with a C14 power plug
- Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
- Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
- DIN rail mounting option for space saving with no additional enclosure needed
- Power management board indicates battery and power status
- Revolutionary enclosure with illumination bar that lights up when enclosure is opened, tamper sensing, and power status LED
🔒 Shop at CTC Communications for the best deals on genuine Rosslare security products – your trusted partner in professional access control solutions.
You can find firmware updates and product documentation at rosslaresecurity.com.
Original: $308.86
-65%$308.86
$108.10Product Information
