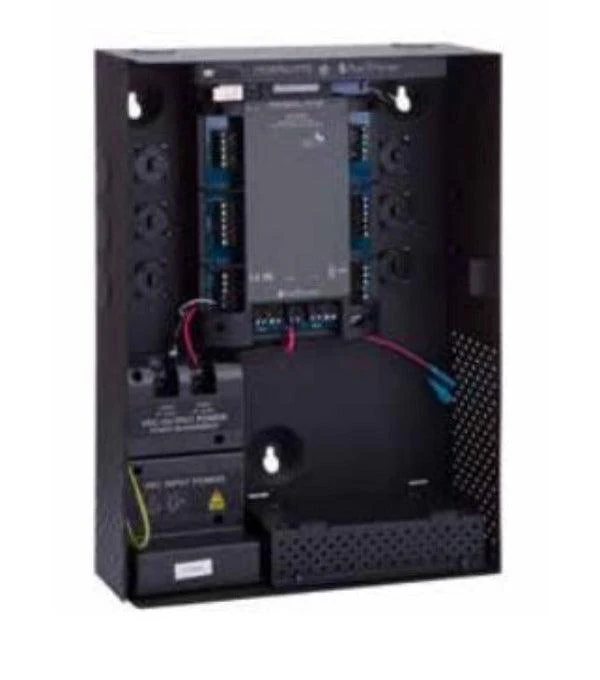

Rosslare AC-225IP-BA IP Access Controller 2 Reader TCP/IP 10/100 Ethernet AxTraxNG™ Server Software
Rosslare IP Networked Access Controller, Type I Plug Power Cable, AC-225IP-BA Take control of your security setup with the convenience of networked access.
The AC-225IP-B Intelligent 2-Reader Expandable Networked Access Controller is
powered by Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full-featured access control and automation capability via a 10/100 ethernet port.
The AC-225IP-B (TCP/IP) and AC-225-B (RS-485) control panels have one expansion slot for mounting one MD unit.
The expansion modules MD-D02B (2 readers, 4 outputs, 4 inputs), and MD-IO84B (8 EOL supervised inputs and 4 outputs) are easy to mount and can be added in under one minute. Rosslare offers a variety of ordering options, including DIN-panel only, and sets upon a ME-1015 advanced power supply lockable enclosure. The system provides an ideal, modular and expandable solution for commercial and institutional needs.
Model: AC-225IP-BA
Main Features:
- Full online and offline operation
- Supports 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas,128 time zones, 64 holidays, and 32 NG Smart, Links for automation
- 20,000 nonvolatile, FIFO, records the event log while offline
- Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D02B 2-Reader expansion for additional 2 readers with 4 inputs, 4 outputs
- Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 2 weeks when total power loss (no batteries to replace)
- Supports a wide range of Wiegand reader formats, PIN keypad formats, and logic options to support a wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
Shop CTC Communications for best deals on Rosslare Security Products
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Rosslare IP Networked Access Controller, Type I Plug Power Cable, AC-225IP-BA Take control of your security setup with the convenience of networked access.
The AC-225IP-B Intelligent 2-Reader Expandable Networked Access Controller is
powered by Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full-featured access control and automation capability via a 10/100 ethernet port.
The AC-225IP-B (TCP/IP) and AC-225-B (RS-485) control panels have one expansion slot for mounting one MD unit.
The expansion modules MD-D02B (2 readers, 4 outputs, 4 inputs), and MD-IO84B (8 EOL supervised inputs and 4 outputs) are easy to mount and can be added in under one minute. Rosslare offers a variety of ordering options, including DIN-panel only, and sets upon a ME-1015 advanced power supply lockable enclosure. The system provides an ideal, modular and expandable solution for commercial and institutional needs.
Model: AC-225IP-BA
Main Features:
- Full online and offline operation
- Supports 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas,128 time zones, 64 holidays, and 32 NG Smart, Links for automation
- 20,000 nonvolatile, FIFO, records the event log while offline
- Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D02B 2-Reader expansion for additional 2 readers with 4 inputs, 4 outputs
- Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 2 weeks when total power loss (no batteries to replace)
- Supports a wide range of Wiegand reader formats, PIN keypad formats, and logic options to support a wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
Shop CTC Communications for best deals on Rosslare Security Products
