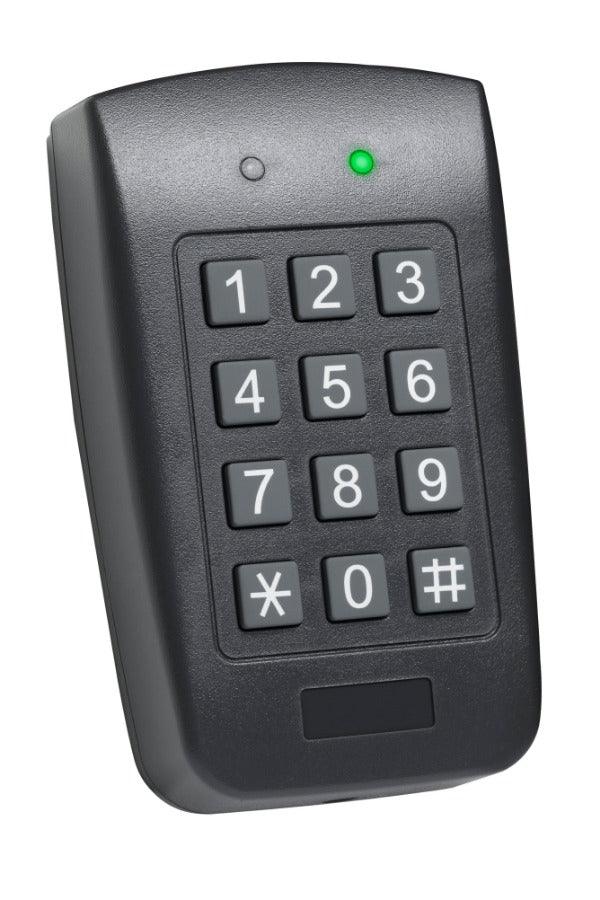

Rosslare AC-F43 Standalone Keypad Outdoor Backlit with PIN IP65

Rosslare AC-F43 Standalone Backlit PIN Controller

The Rosslare AC-F43 is a reliable and cost-effective standalone backlit PIN controller, ideal for securing single-door applications where PIN-based access is required. Designed for both indoor and outdoor use, it’s built tough with water and UV resistance and supports up to 500 unique users.

Model: AC-F43

Key Features:

• Supports 500 Users: Easily program and manage users with smart enroll and delete functionality.

• Flexible PIN Configuration: Set PIN codes between 4 to 8 digits based on your security needs.

• Multiple User & Access Levels:

  • User Levels: Normal (single PIN), Secure (dual PIN), and Master

  • Access Modes: Normal, Bypass, and Secure

• Simple Installation: Fits standard gang box mounts and includes a full installation kit and mounting template.

• Dual Power Options: Operates via AC transformer or regulated DC power supply.

Professional-Grade Security Features:

• Weather & UV Resistant: Rated IP65 for harsh environments.

• Tamper Detection: Built-in optical back tamper for added protection.

• Flexible I/O:

  • 2 inputs: Request-to-Exit (REX) and Auxiliary

  • 2 Form C relay outputs for lock strike and auxiliary devices (2A)

• Visual & Audio Indicators:

  • Dual tri-colour LEDs for programming and status

  • Internal buzzer for alerts

• Advanced Auxiliary Functions:

  • 10 programmable modes such as Door Ajar, Forced Door, Alarm Shunt, and Door Monitor

  • Supports programmable chime/siren with BL-D40 bell button

Specifications:

• Brand: Rosslare

• Product Type: Keypad & Reader

• Warranty: 24 Months

🔒 Rosslare Standalone Keypad Comparison Table (500-User Models)

Model	Series	Keypad Type	Reader Type	Backlit	Housing	Tamper Detection	Weather Rating	Controller Mode	Notable Features
AYC-G54	Standard	Touch (Glass)	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Sleek glass design, piezo touch keys
AYC-F54	Standard	Piezoelectric	PROX / HID	Yes	All-metal	Yes	IP65	Yes	Durable metal, back cover tamper
AYC-E55	Standard	Standard Plastic	PROX / HID	Yes	Plastic enclosure	Yes	IP65	Yes	Budget-friendly, tamper-resistant
AYC-Q54B	Standard	Metal Piezo Keypad	PROX / HID	Yes	Metal (Vandal-Resistant)	Yes	IP65	Yes	Rear cable, optical tamper, blue backlight
AYC-E60B	GoPROX® Series	Plastic Keypad	PROX / HID	Yes	Indoor/Outdoor	Yes	IP65	Yes	Converts to standalone with PS-x5 PSU
AYC-F60	GoPROX® Series	Piezoelectric	PROX / HID	Yes	Metal	Yes	IP65	Yes	HID-compatible, secure relay outputs
AYC-G60	GoPROX® Series	Touch Glass Keypad	PROX / HID	Yes	Sleek Glass + Plastic	Yes	IP65	Yes	Slim glass design, dual-authentication ready
AYC-Q60	GoPROX® Series	Metal Piezo Keypad	PROX / HID	Yes	Anti-Vandal Metal	Yes	IP65	Yes	Card + PIN, 3 security modes, advanced I/O

🔒 Shop at CTC Communications for the best deals on genuine Rosslare access control systems, trusted by professionals across Australia.

💡 For firmware and manuals, visit rosslaresecurity.com.
