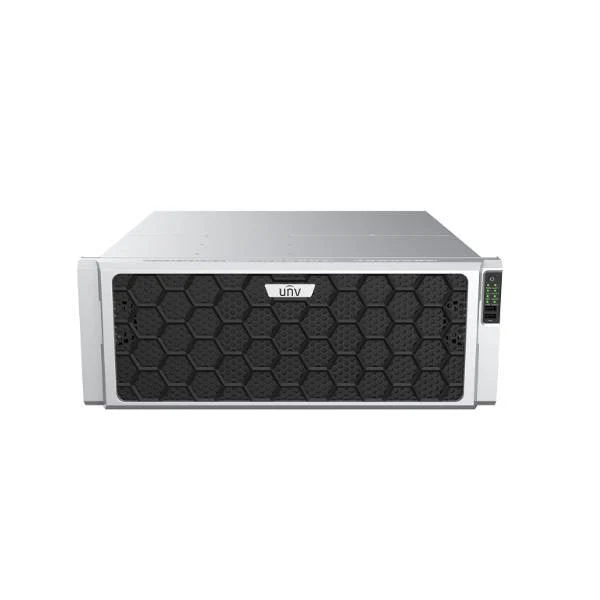

Uniview Network Video Recorder, 256 Channel, 24 SATA, NVR824-256R

Uniview NVR824-256R network video recorder with 256 channel capacity and up to 12 megapixel resolution recording.

Model: NVR824-256R

Cloud Upgrade| Commercial | Residential

Features

• Support Ultra 265/H.265/H.264 video formats
• 256-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Redundant power supply optional
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• 24 SATA HDDs, up to 10TB for each HDD
• Support 2 miniSAS Interfaces
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare

Specifications

Model	NVR824-256R
Video/Audio Input
IP Video Input	256-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	768Mbps
Outgoing Bandwidth	768Mbps
Remote Users	256
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Decoding
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
Hard Disk
SATA	24 SATA interfaces
Capacity	up to 10TB for each HDD
Extension board	4
miniSAS*	2 miniSAS ports
eSATA	1
Disk Array
Array Type	RAID 0/1/5/6/10/50/60

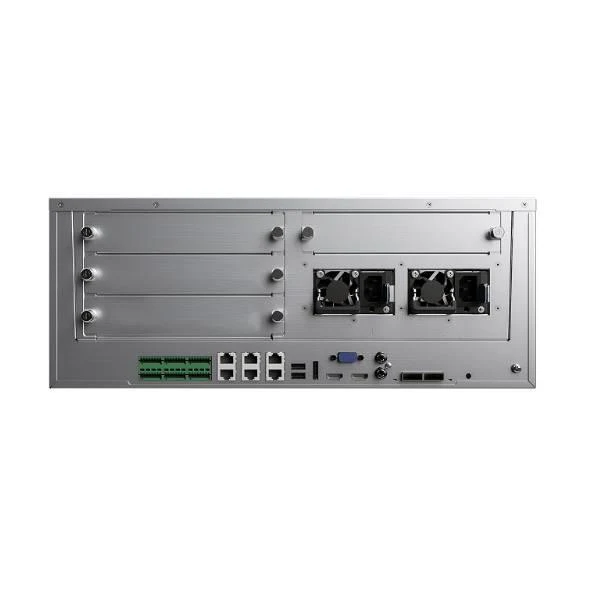

External Interface
Network Interface	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
Serial Interface	1 x RS232, 1 x RS485
USB Interface	Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0
Alarm In	24-ch
Alarm Out	8-ch
Power Output	12V
General
Power Supply	100 ~ 240V AC Power Consumption: ≤ 70 W (without HDD)
Working Environment	-10°C ~ + 50°C (+14°F ~ +122°F), Humidity ≤ 90% RH (non-condensing)
Dimensions	533mm ×484.6mm × 175.5mm (21.0 "×19.1" ×6.9")
Weight (without HDD)	≤ 12.5 Kg (27.56 lb)
