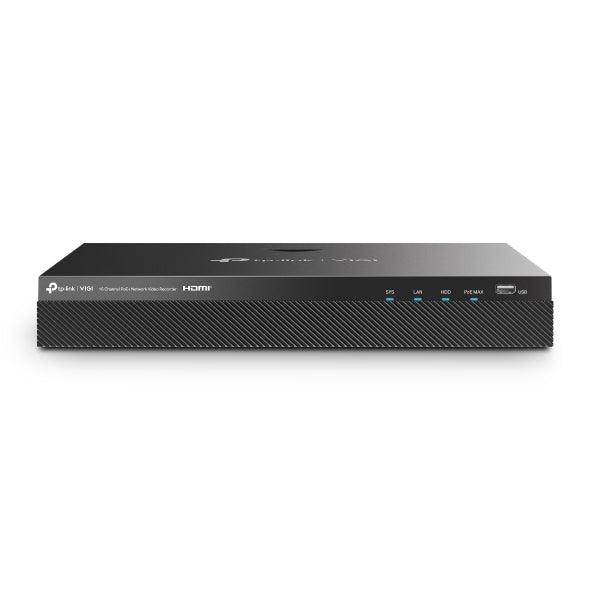

VIGI 16 Channel PoE+ Network Video, TP-VIGI NVR2016H-16P

The Vigi 16 Channel Network Video Recorder TP-VIGI NVR2016H-16P, is a plug and play NVR. It offers 8K High Definition live view storage and playback as it is embedded with advanced technology.

High-Capacity NVR with 4K HDMI Output & 16 PoE+ Ports

The VIGI TP-VIGI NVR2016H-16P is a high-performance 16-channel network video recorder (NVR) designed for large-scale surveillance applications. With 4K HDMI video output, H.265+ compression, and dual SATA interfaces supporting up to 16TB storage, this enterprise-grade NVR ensures high-quality video recording, efficient storage management, and seamless remote monitoring.

Equipped with 16× PoE+ ports delivering a 90W total power budget, the VIGI NVR2016H-16P allows direct camera connections, simplifying installation while reducing cabling costs. Featuring real-time live view, 16-channel synchronous playback, and remote monitoring via the VIGI app, this NVR provides comprehensive video security for businesses, retail environments, warehouses, and large properties.

---

Key Features

16-Channel NVR with 4K Ultra HD HDMI Output

✔ Supports up to 16 IP cameras for real-time monitoring
✔ 4K HDMI & VGA simultaneous output for high-definition video playback

Integrated PoE+ for Seamless Installation

✔ 16× 10/100 Mbps PoE+ Ports with 90W Total PoE Budget
✔ Directly powers PoE cameras, reducing the need for separate power sources

Smart Video Processing & Storage Capacity

✔ Up to 8-ch @ 2MP (25fps) or 4-ch @ 4MP (25fps) Decoding Capability
✔ 2× SATA interfaces, supports up to 16TB HDD storage for long-term video retention

H.265+ Compression for Optimized Storage & Bandwidth

✔ Reduces bandwidth & storage usage while maintaining video quality

Advanced Playback & Bandwidth Management

✔ 16-Channel Synchronous Playback for Efficient Video Review
✔ 80 Mbps Incoming Bandwidth & 60 Mbps Outgoing Bandwidth

Remote Access & Monitoring

✔ Control your security system via the VIGI App & Web Interface
✔ Live view, playback, and system management from anywhere

---

Ideal Use Cases

✔ Retail Chains & Large Business Security – Monitor multiple locations and high-traffic areas
✔ Industrial & Manufacturing Sites – Secure perimeters, workspaces, and logistics hubs
✔ Warehouses & Storage Facilities – Track inventory and entry points
✔ Gated Communities & Parking Lots – Ensure enhanced security and vehicle monitoring

---

Technical Specifications

Recording & Storage

• Maximum Camera Channels: 16
• Decoding Capability: 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps)
• Synchronous Playback: 16-channel
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• Storage: 2× SATA Interface (Supports up to 16TB HDD)

Connectivity & PoE Power

• PoE Ports: 16× 10/100 Mbps PoE+ (IEEE 802.3af/at)
• PoE Power Budget: 90W
• Ethernet Interface: RJ45 10/100 Mbps Network Port

Video & Display Output

• HDMI Output: 4K Ultra HD
• VGA Output: Simultaneous HDMI/VGA Output

Video Compression

• H.265+ / H.265 / H.264+ / H.264 Supported

Remote Access & Software Integration

• VIGI App & VIGI Security Manager for remote monitoring
• Web Interface & ONVIF Support for third-party camera compatibility

---

Remote Access with VIGI App & Security Manager

📲 Monitor live footage remotely
📲 Receive instant alerts on security events
📲 Easily configure recording schedules & playback footage
📲 Manage PoE-powered cameras with a single platform

---

Why Choose the VIGI 16-Channel PoE+ Network Video Recorder?

The VIGI TP-VIGI NVR2016H-16P provides a robust and scalable surveillance solution for businesses and large-scale security applications. With 4K video output, PoE+ support, advanced playback features, and remote monitoring, this NVR ensures high-quality video recording and real-time event detection.
