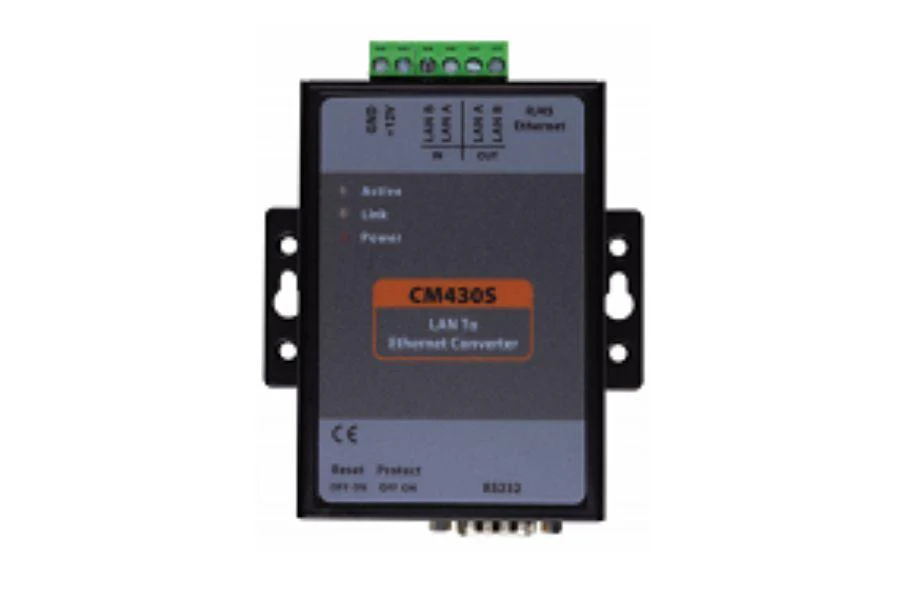

Bosch RS485 Lan to Ethernet Module for Solution 6000, CM430S

The CM430S allows you to extend the control panels RS485S LAN across a local network.  Table 1: shows the panel and panel fi rmware which are compatible with the CM430S converter module. MENU 7-7-0, Option 5 (Extend LAN Fail) must be set when using the CM430S.

Model : CM430S

 Initial Set up

Using a stand alone computer (your PC must have an Ethernet port), you can connect your computer directly to the CM430S using a crossover Ethernet cable.   Otherwise, connect both the computer and CM430S using straightthrough Ethernet cable to a hub or switch. (Ensure computers adapter is set to the same base address, ie: 192.168.1.1   See page 7 - Windows IP Confi guration)

Specifications:

• Part Number: CM430S - RS485 LAN To Ethernet Module - Supporting Star Configuration
• Operating Voltage: 10.5V D.C - 14.5V D.C. @ 150mA Max
• Module Connection  (RS485 LAN): Ethernet Interface: 10 / 100Base-T, Half / Full Duplex / RS485 Signal: 2 wire Data+/- Operating
• Environment: 0˚ to 55˚C RH 5 to 80% at 30˚C non-condensing.
• Certification: EN55032:2012, EN55024: 2010.A1:2015, EN61000-3-2:2014, EN61000-2-2:2013
• Warranty: 3 years from date of manufacture (return to base)
• Solution 6000: V2.29 or higher
